3.5-inch TFT module | 320x480 MCU TFT display module | ILI9488

The 3.5-inch TFT module HTM-H035A31-MCU-A01 is a high-performance 3.5-inch TFT liquid crystal display module designed for embedded systems and industrial applications. The module adopts a high-definition resolution of 320 (RGB) x 480 and a wide color gamut of NTSC 69%. The picture display is delicate and colorful, which can meet the user's stringent requirements for visual effects. The driver chip uses ILI9488, supports MCU 16-bit (default), 8-bit and 4-SPI interfaces, has strong compatibility, and can be flexibly adapted to a variety of development scenarios. Its operating temperature range covers -20℃ to +70℃, and the storage temperature can reach -30℃ to +80℃. It can maintain stable operation even in harsh environments to ensure the reliability of the equipment. The 3.5-inch TFT module has a brightness of up to 400 cd/m2, which is still clearly visible in strong light environments and is suitable for various outdoor or high-brightness scenes.

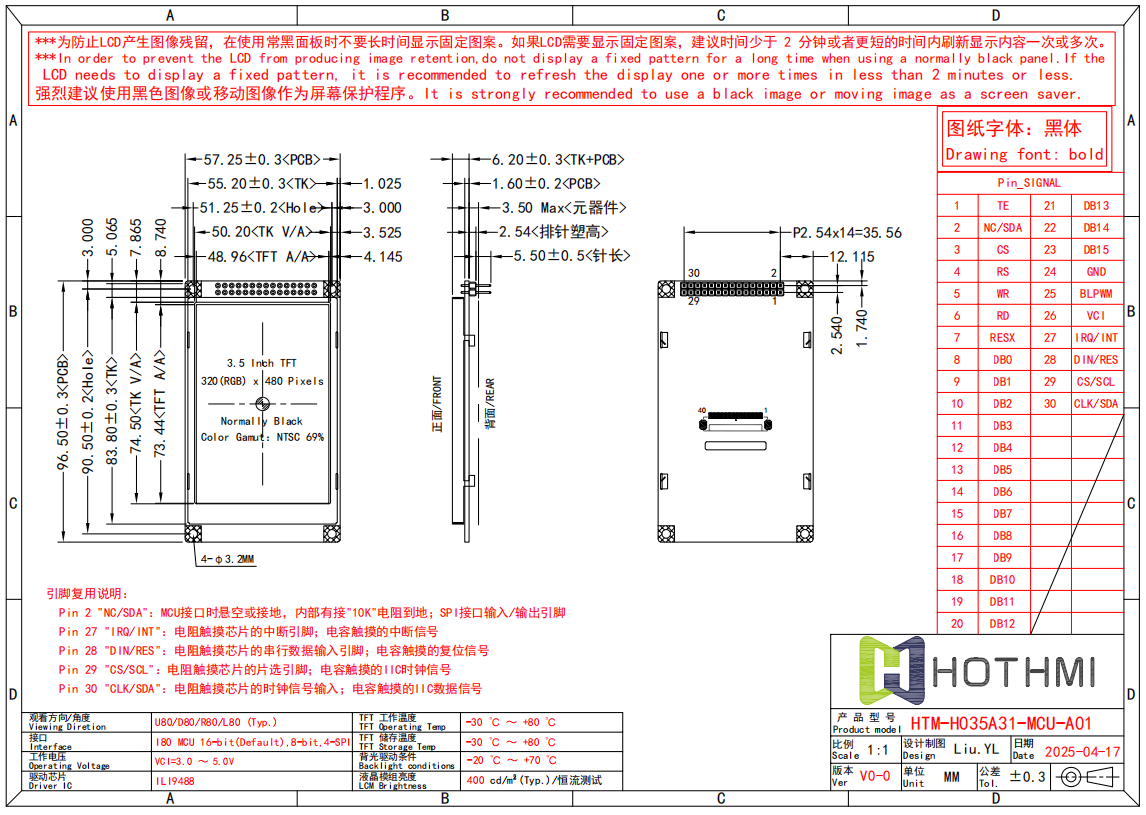

In order to extend the service life of the screen, the module is specially designed with a screen protection mechanism. It is recommended that users use black or dynamic images for regular refresh to avoid image retention caused by long-term static display. The interface design is flexible and supports functions such as SPI/IIC switching and touch interrupt signal, which is convenient for users to configure according to actual needs. In addition, its structural dimensions are precise and the tolerance is strictly controlled within ±0.3mm, which is convenient for integrated installation and is suitable for industrial control, medical equipment, consumer electronics and other fields. The 3.5-inch TFT module HTM-H035A31-MCU-A01 is an ideal choice for improving the display quality of equipment with its excellent display effect, stable performance and wide compatibility.
