3.5 inch TFT LCD Display | 640x480 LVDS TFT Display  | IPS TFT Color Display

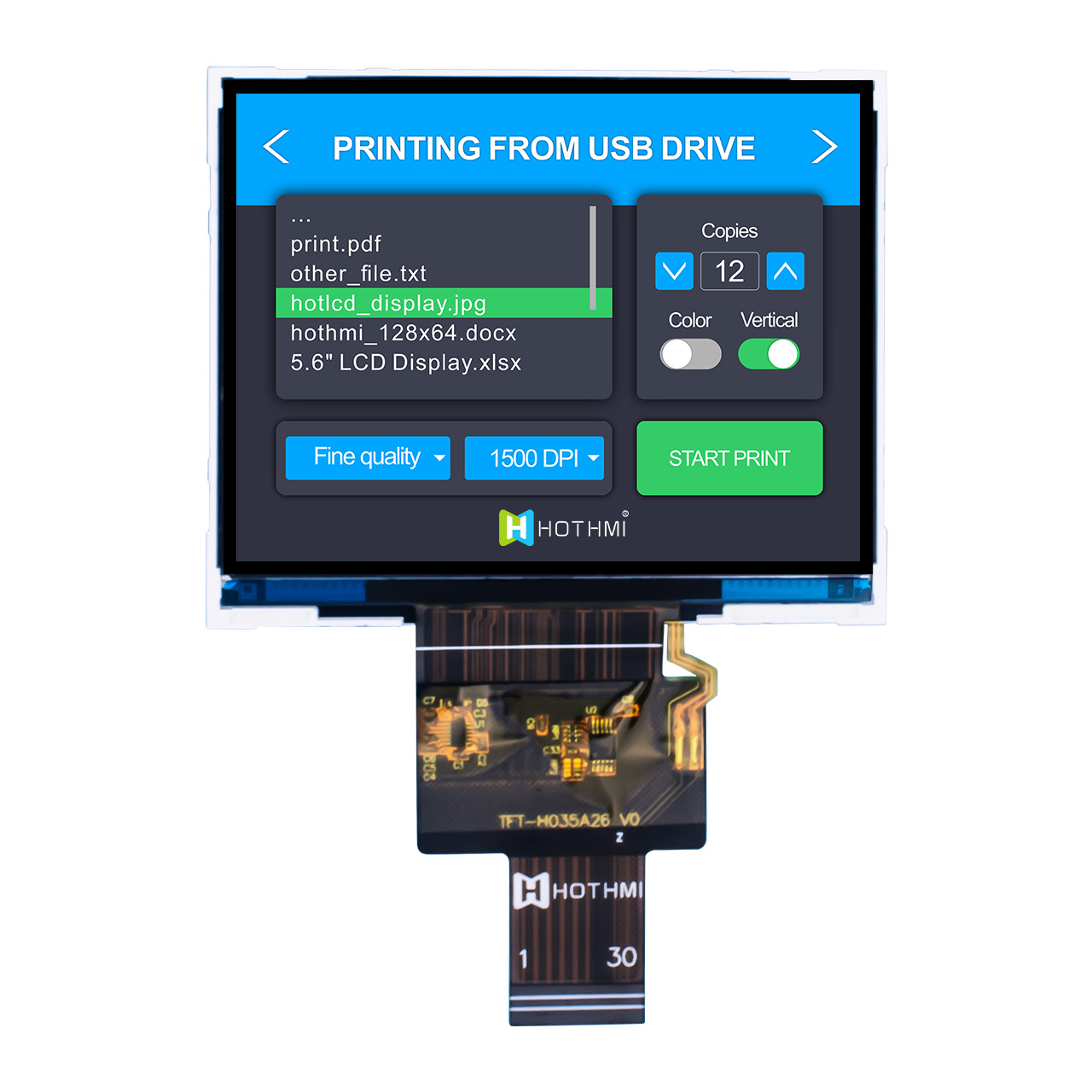

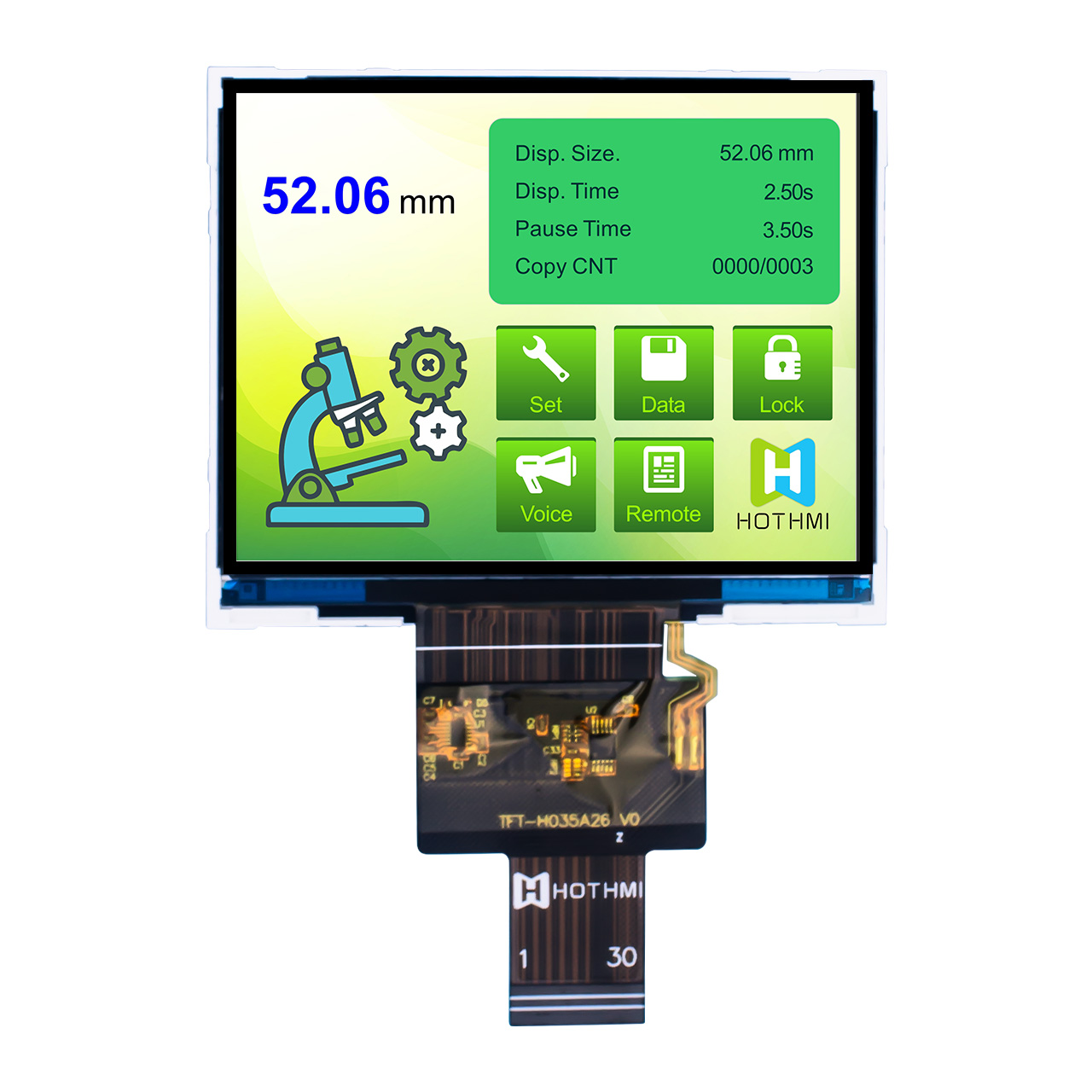

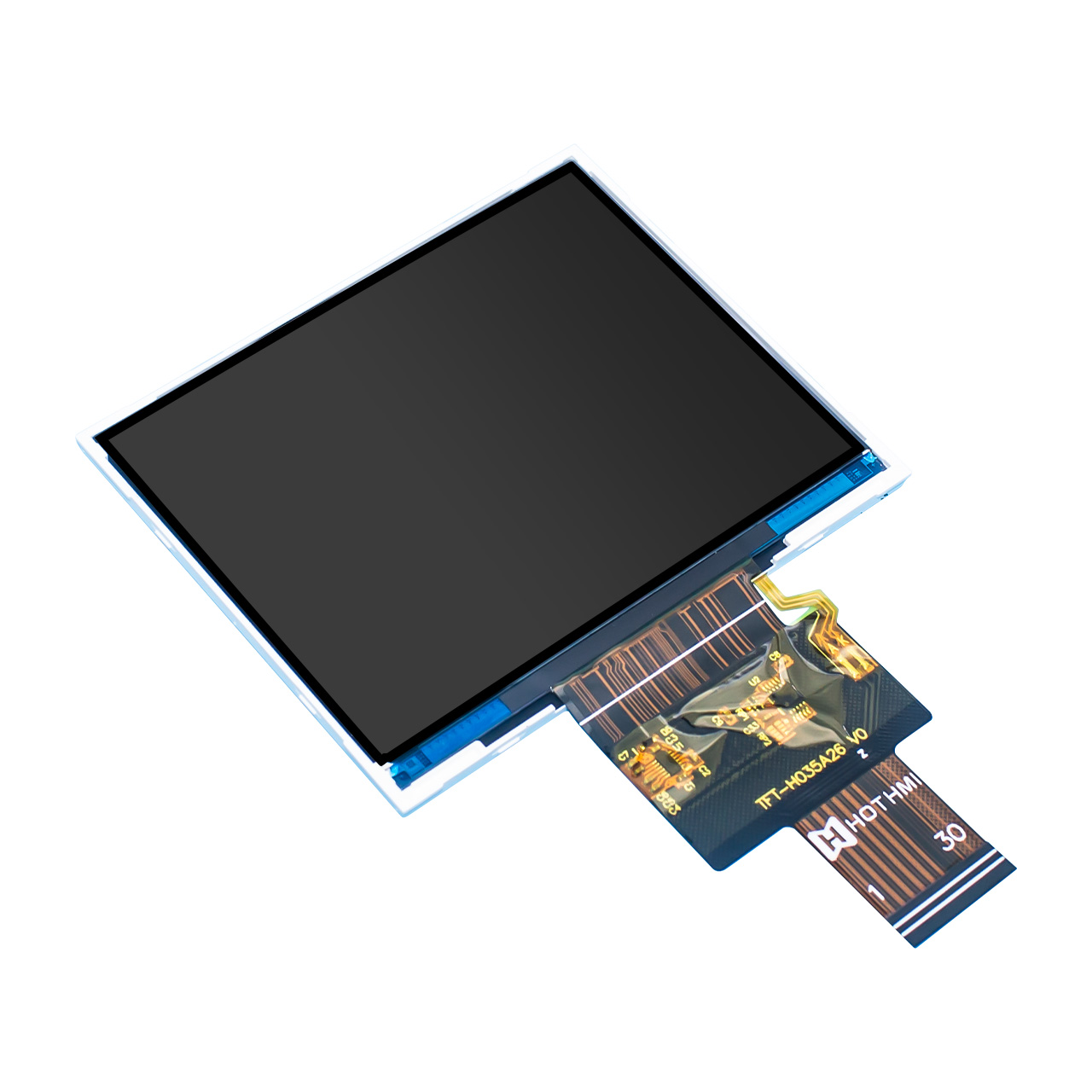

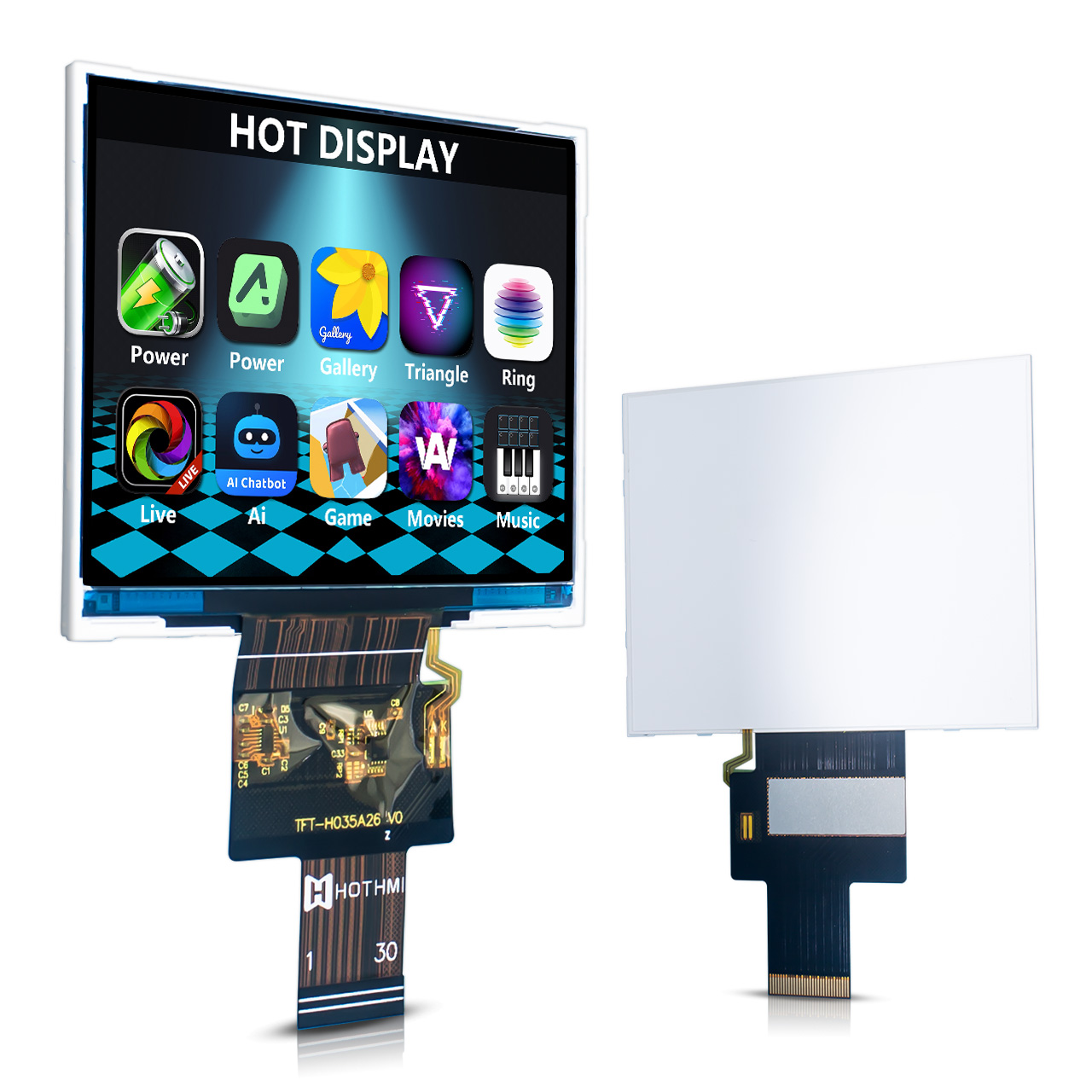

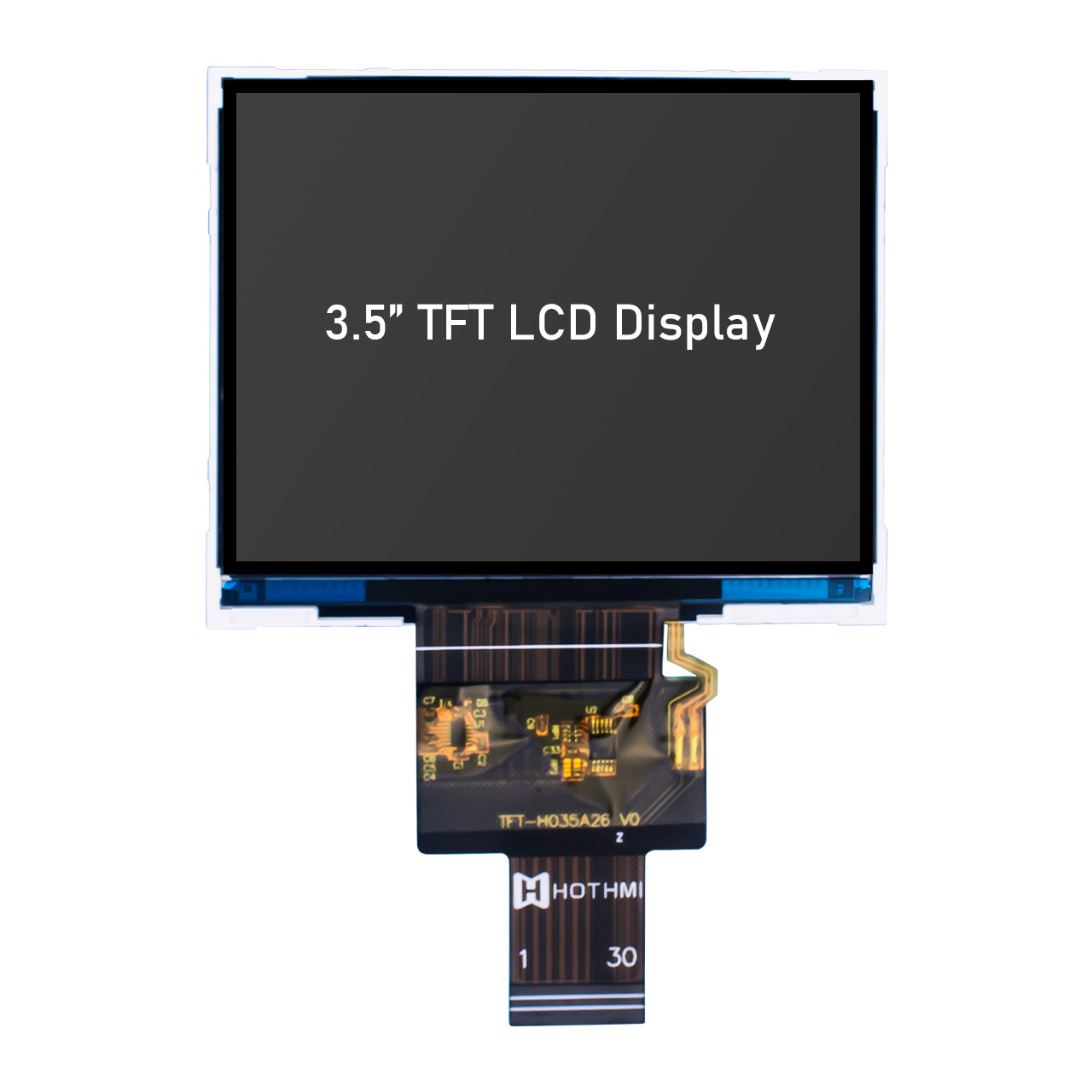

This 3.5 inch TFT LCD Display adopts 640 (RGB) × 480 high resolution and 70.08 × 52.56 mm effective display area. The picture is clear and delicate, the color reproduction is accurate, and the color gamut covers 50% of NTSC, meeting the needs of high-precision image display. Its LVDS-24-bit interface supports high-speed data transmission and is compatible with a variety of mainstream drive solutions to ensure the efficiency and flexibility of system integration.

This 3.5 inch TFT LCD Display adopts a rugged industrial-grade design with an operating temperature range of -30℃ to +80℃, which can adapt to stable operation in extreme environments. The backlight module provides two high-brightness configurations: the brightness of the non-touch screen version can reach 450 cd/m2, and the brightness of the capacitive touch screen version is 350 cd/m2. Users can also choose a high-performance backlight with a peak brightness of 1000 cd/m2 to meet the visual needs under different lighting conditions indoors and outdoors. The LED backlight has a lifespan of up to 30,000 hours. Combined with the optimized heat dissipation design, it greatly reduces the light decay problem in long-term use and significantly extends the life cycle of the device.

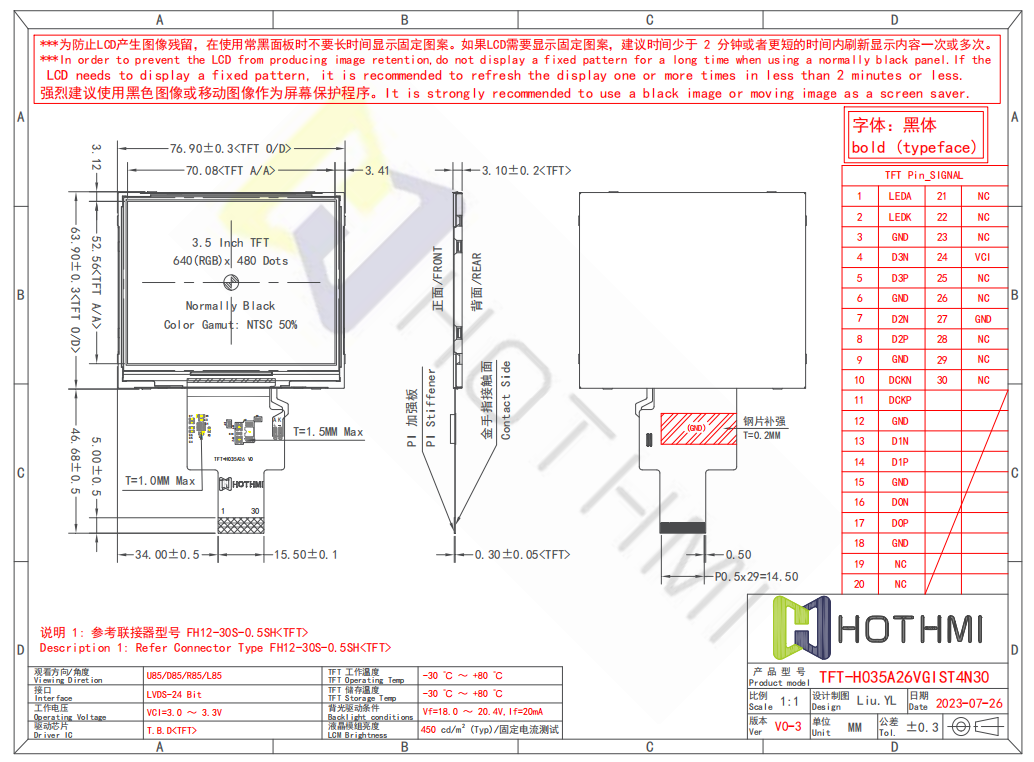

To enhance the interactive experience, This 3.5 inch TFT LCD Display supports capacitive touch screen functions and is equipped with a GT911 driver chip, which is sensitive to touch and has strong anti-interference capabilities. The module interface uses the FH12-30S-0.5SH standard connector, which supports quick installation and maintenance, and provides comprehensive anti-static protection measures to reduce the risk of electrostatic damage from production to use. The product has passed rigorous reliability tests, including high temperature and humidity, impact vibration, and electrostatic discharge (contact ±4kV/air ±8kV) verification to ensure stable performance under harsh working conditions.

Hot Display is deeply engaged in the field of display technology and provides comprehensive technical support for the  3.5 inch TFT LCD Display series, including reference circuit design, optical adjustment solutions, and customized initialization code to help customers shorten the development cycle. Whether it is an industrial instrument panel, medical monitoring equipment, or a smart home terminal, this LCD module can give your product excellent display competitiveness with high reliability, low power consumption, and long life as its core advantages.
