Product type：COG LCD
Show contents：128x64

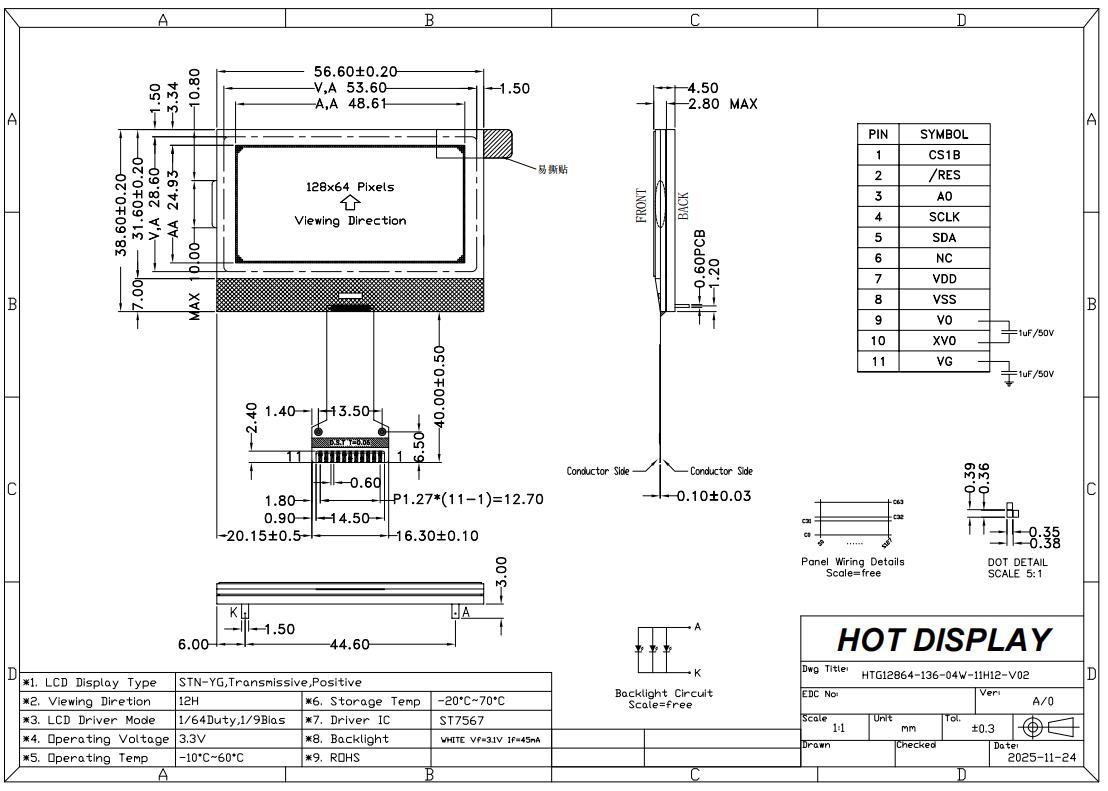

Outline size(mm) ：56.6x38.6x4.5
Size of View Window(mm)：53.6x28.6
Display size(mm) ：48.61x24.93
Point spacing(mm)：0.38x0.39
Product application：Instrument
Visual angle：12H
Connection PIN Number：FPC-11pin
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7567
This specialized 128x64 COG LCD Display is engineered for precise instrumentation and measurement applications. Utilizing advanced Chip-On-Glass (COG) technology, the module achieves an exceptionally slim and compact profile, making it ideal for space-constrained devices where a low-profile design is critical. The 128x64 COG LCD Display offers superior power efficiency, significantly extending battery life in portable equipment thanks to its inherently low-voltage operation and optimized driver circuitry.
Stability and reliability are core strengths of this display. The robust COG construction, where the driver IC is directly bonded to the glass substrate, ensures excellent mechanical durability and resistance to vibration. Furthermore, the module features high anti-static protection, safeguarding it against electrical interference in demanding environments. Its wide operating temperature range guarantees consistent performance under varying conditions.
The integration of a standard MCU interface and supporting white LED backlight ensures easy implementation and clear readability. For applications demanding a reliable, thin, and energy-efficient graphical display solution, this 128x64 COG LCD Display stands out as an optimal choice, combining enduring stability with minimalist design. Ultimately, the 128x64 COG LCD Display delivers the essential balance of performance and practicality for professional instrumentation.
